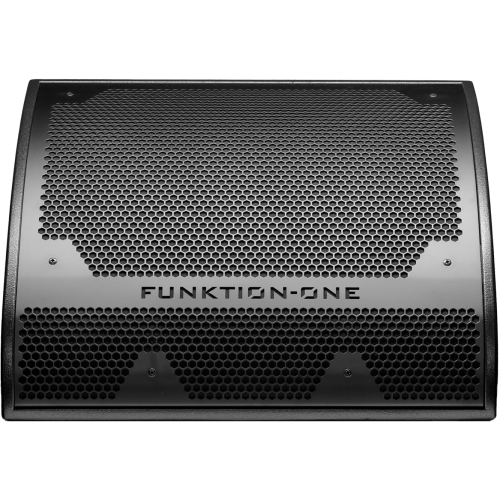

• PSM15 front2
  • PSM15 side 1

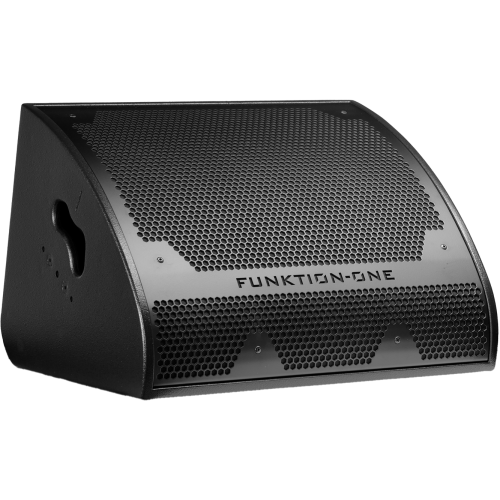

  • Funktion One PSM15 white background2

PSM15

Funktion-One

PSM15 - Advanced Stage Monitoring for Live Applications

It delivers a natural and detailed response, with excellent vocal intelligibility and low distortion at high SPL. The advanced waveguide design provides exceptionally consistent directivity, making the PSM15 inherently less prone to feedback. The 3-way, bi-amped approach enables optimised LF and HF design, resulting in a clearer, stronger vocal range and punchy low frequencies. In live monitoring environments, where vocal clarity, mix definition and feedback control are critical, this translates to a more accurate and stable on-stage reference. PSM15 is optimised for ease of handling, featuring M10 flying points for yoke mounting and M8 points for use with a stand adapter.

Product code: PSM15

Performance Features

  • Naturally flat response without preset EQ
  • Coaxial (3-way) bi-amped design
  • Very high SPL
  • High clarity and vocal intelligibility
  • High impact bass
  • Excellent resistance to feedback
  • Low distortion, even at high SPL
  • Compact and discrete aesthetic

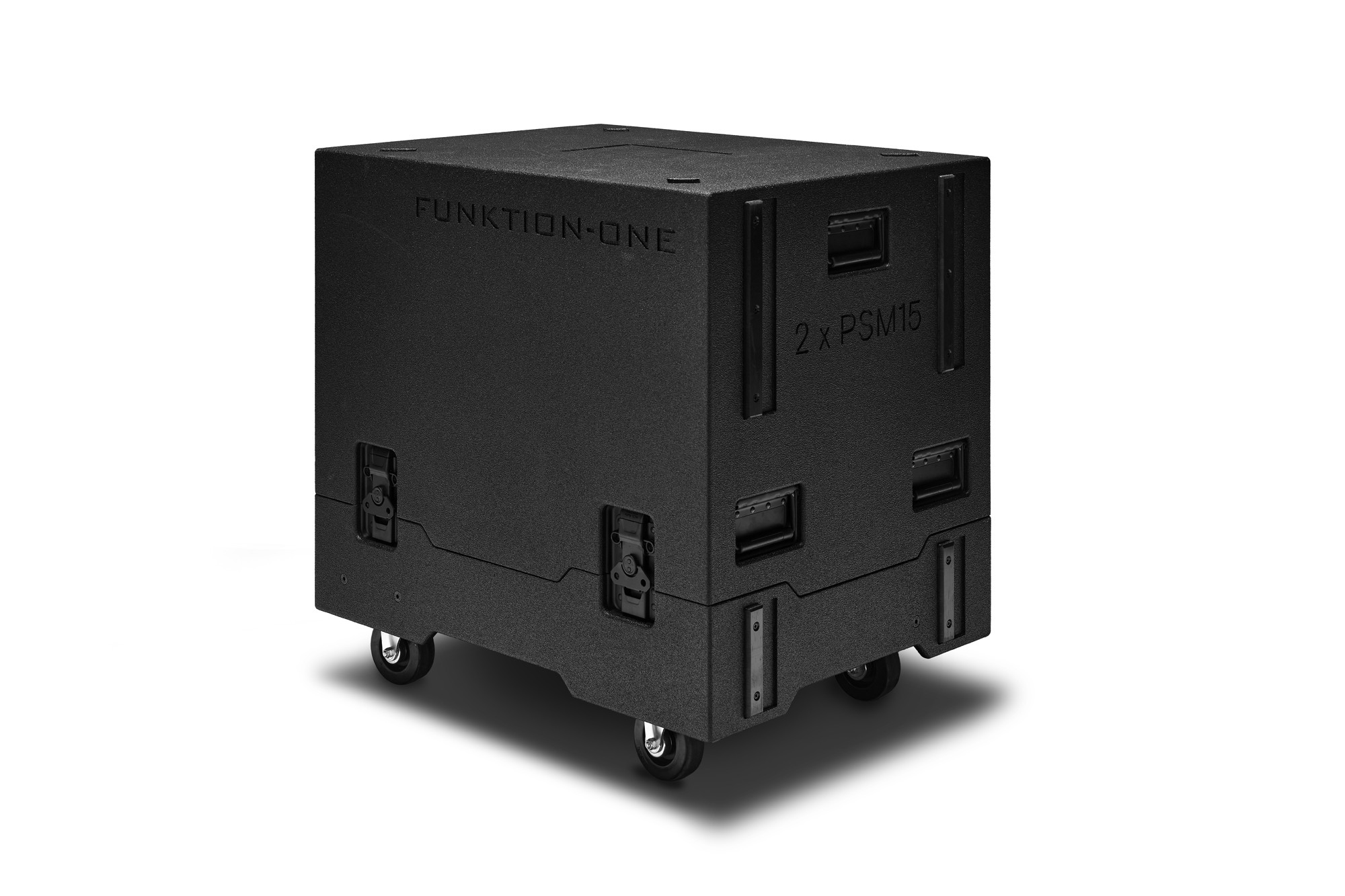

  • PSM15 case closedLR

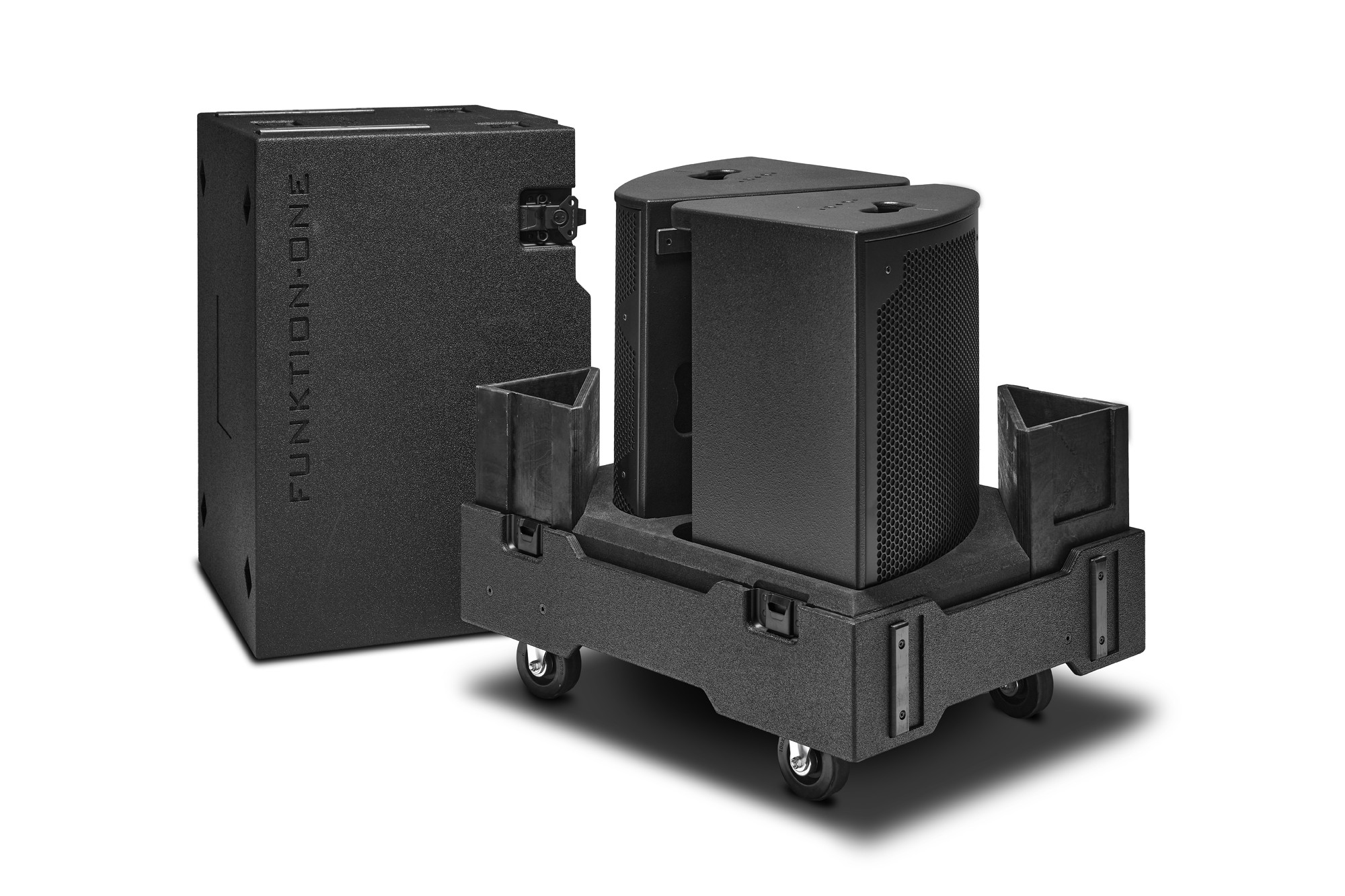

  • PSM15 case open 2LR

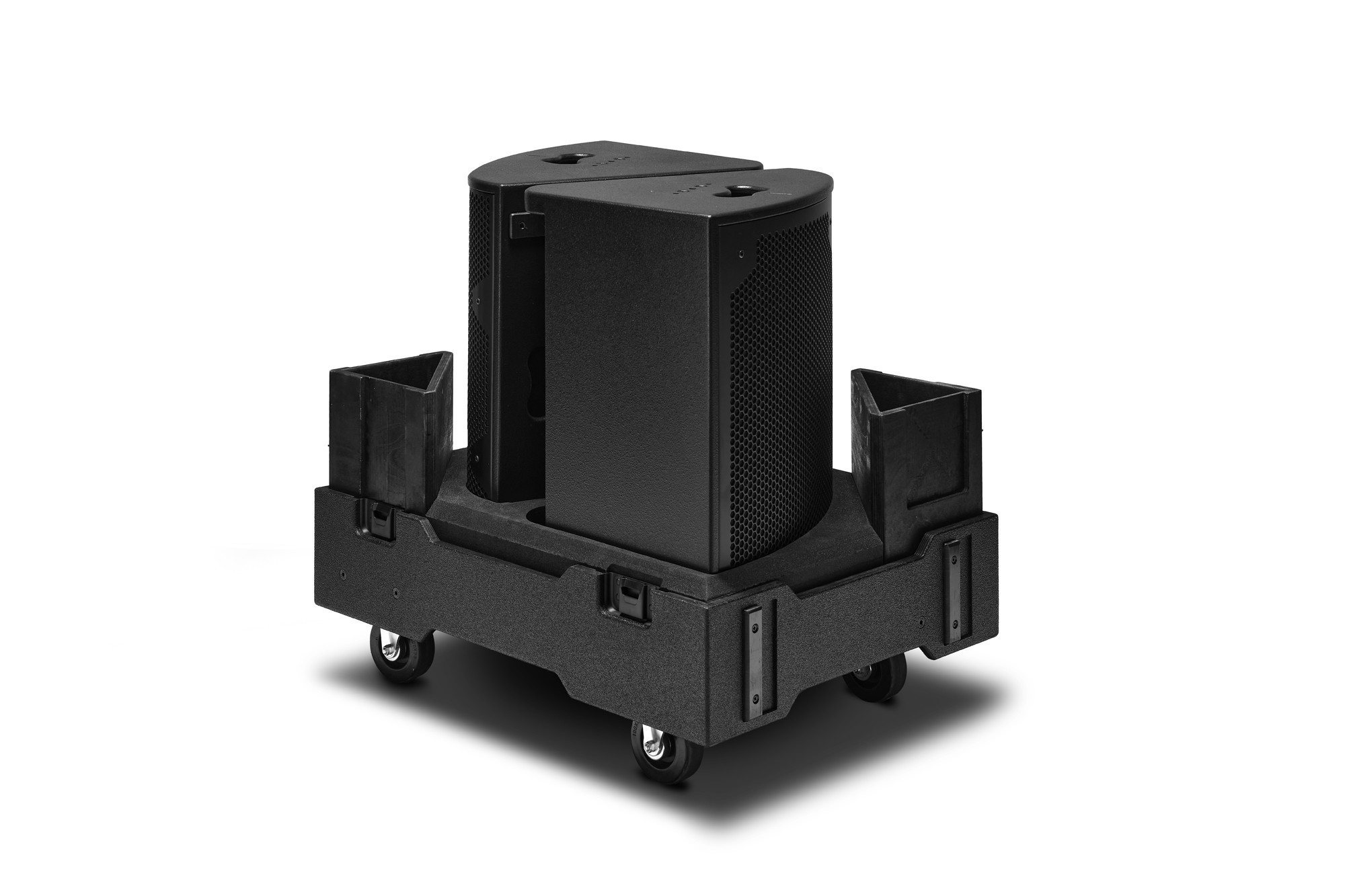

  • PSM15 case open 1LR

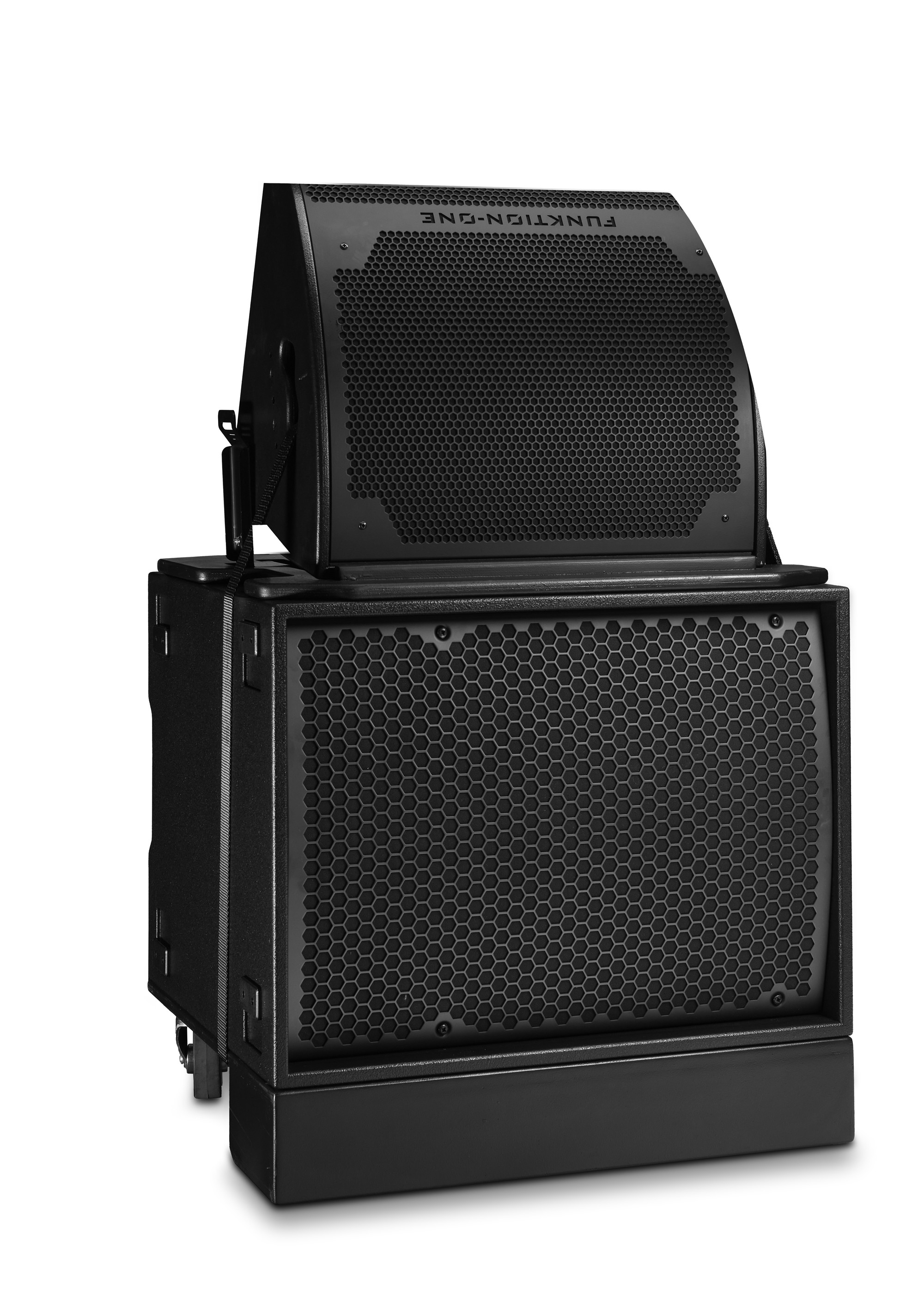

  • PSM15 + Bass angled V2 grill closedLR

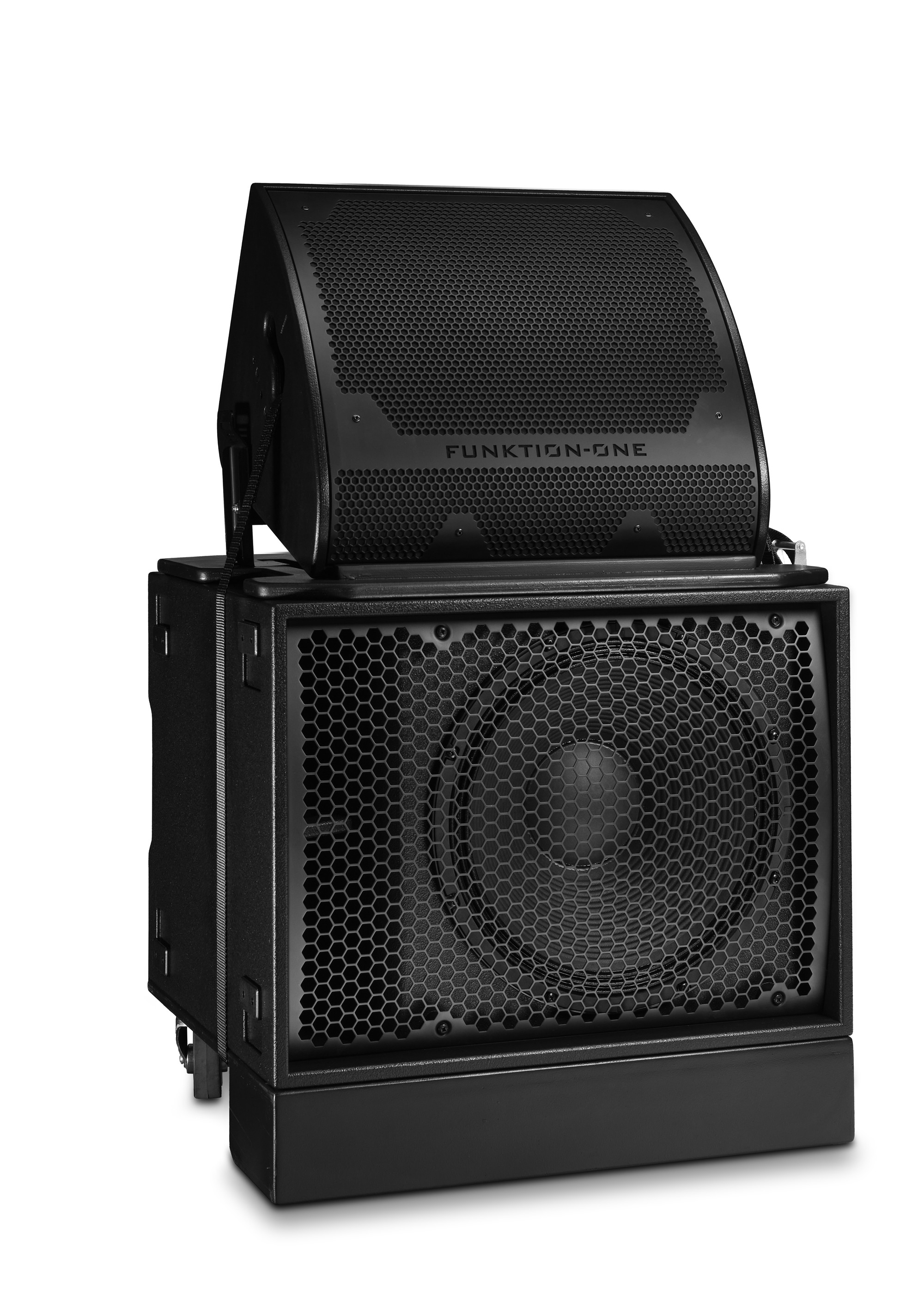

  • PSM15 + Bass angled V1 grill openLR
  • PSM15 + Bass angled V2 grill openLR

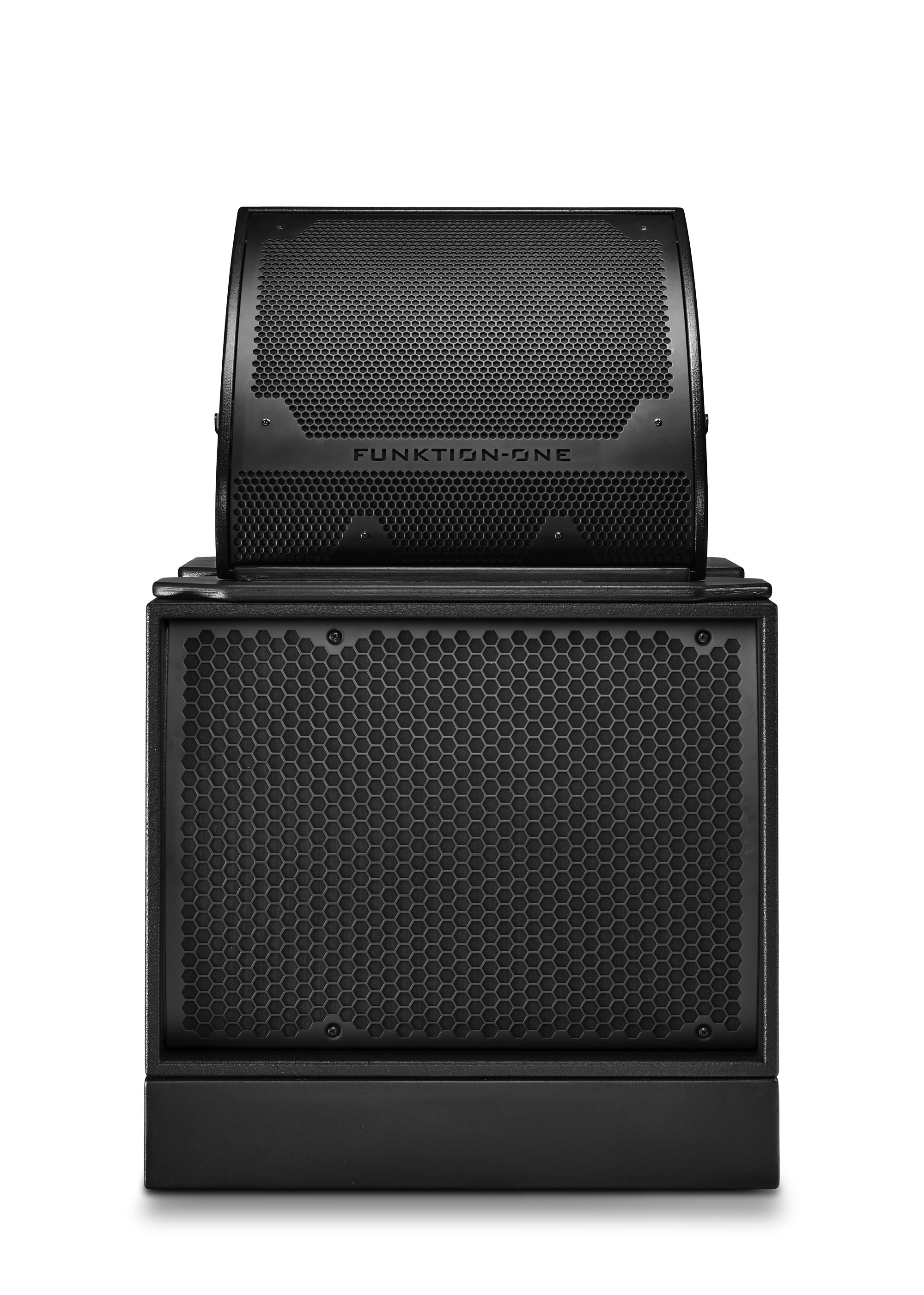

  • PSM15 + Bass front V2LR

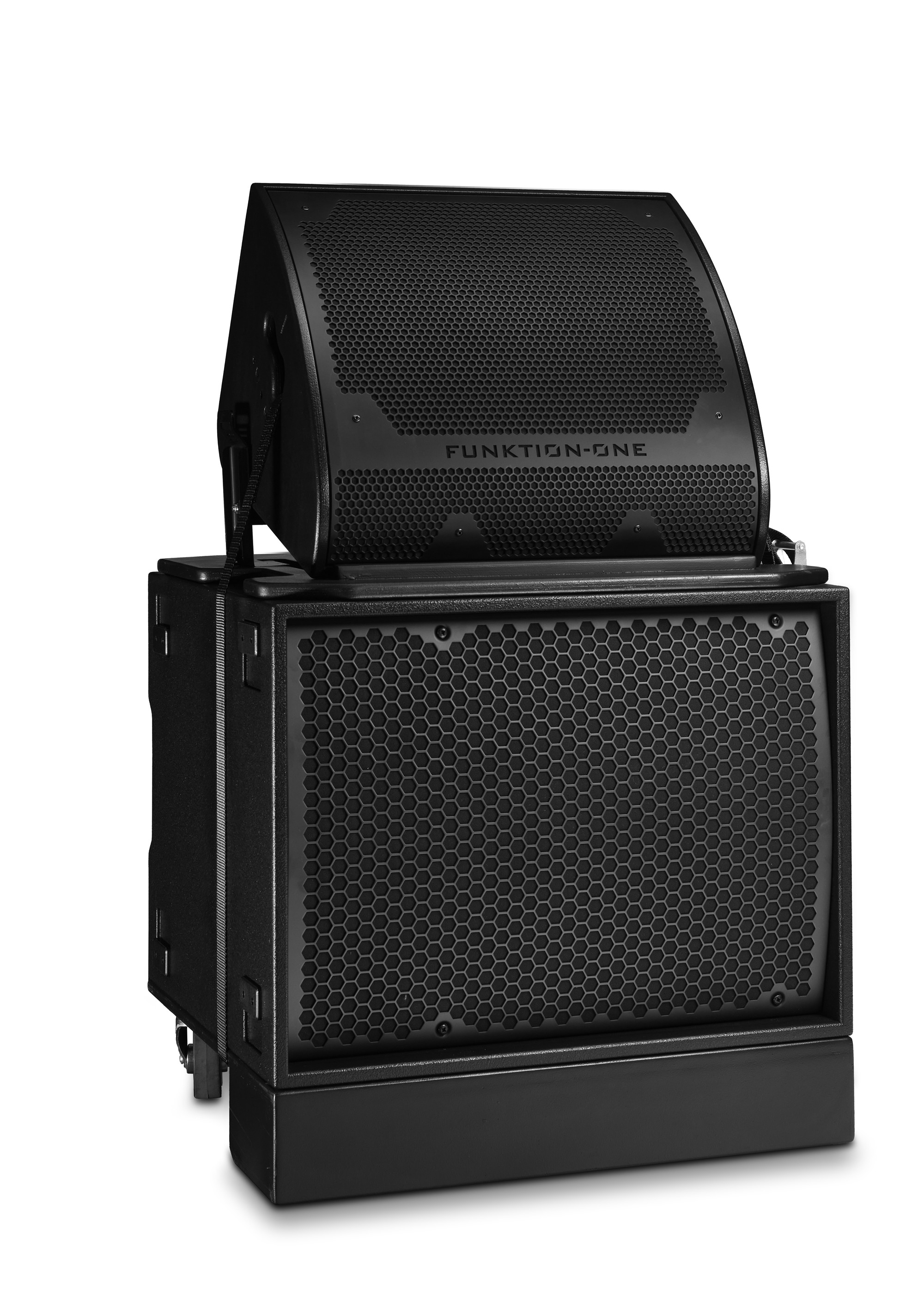

  • PSM15 + Bass angled V1 grill closedLR

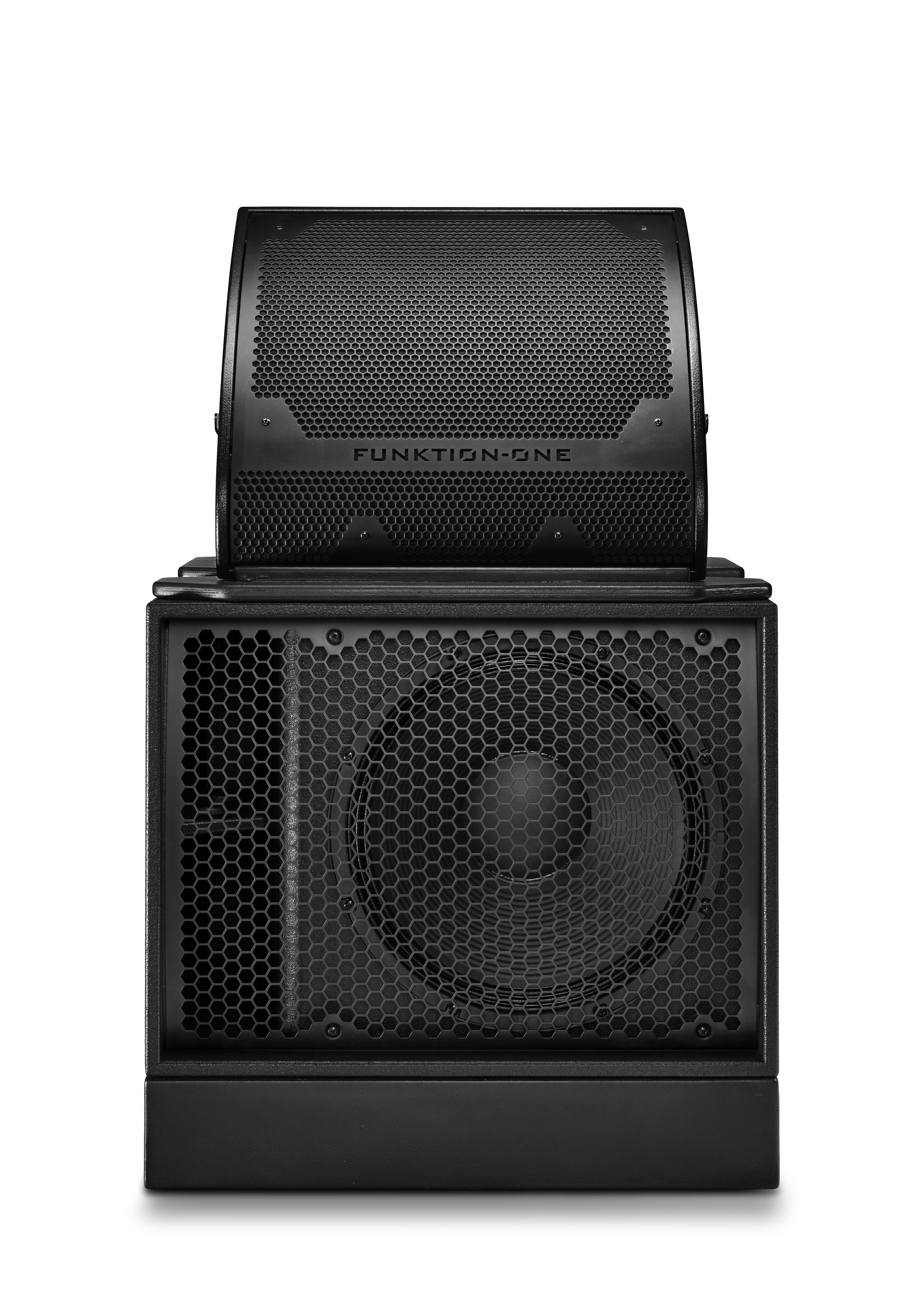

  • PSM15 + Bass front V1LR

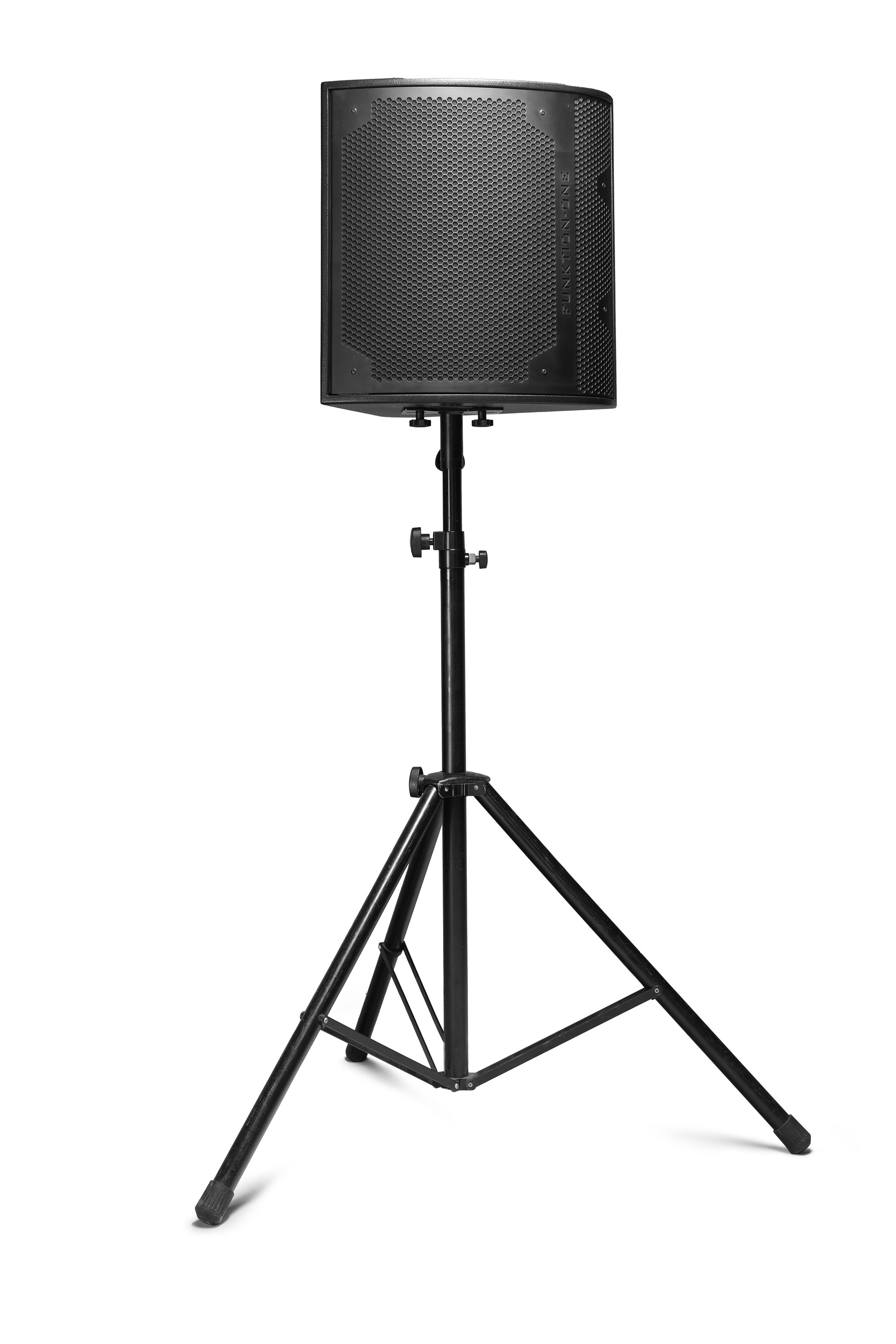

  • PSM15 on standLR
  • PSM15 case closedLR
  • PSM15 case open 2LR
  • PSM15 case open 1LR
  • PSM15 + Bass angled V2 grill closedLR
  • PSM15 + Bass angled V1 grill openLR
  • PSM15 + Bass angled V2 grill openLR
  • PSM15 + Bass front V2LR
  • PSM15 + Bass angled V1 grill closedLR
  • PSM15 + Bass front V1LR
  • PSM15 on standLR

Technical Specification

Usable Bandwidth (-3DB)
80Hz - 18kHz
Weight
28kg (62lbs)
Nominal Dispersion
50° Horizontal x 70° Vertical (rotatable by 90°)
CONNECTORS
2 x NLT4M
Drivers
Driver Fréquences de coupure Sensibilité à 1M Puissance (AES) Impédance nominale
MHF 1kHz - up 105dB at 2.8V 100
15" (LF) 60Hz - 1kHz 96dB at 2.8V 600
