EVOLUTION X

Funktion-One

State of the art Funktion-One sound quality

Evolution X is a significant development of the full range, fully horn loaded cabinet concept. Utilising the latest Funktion-One waveguide technology, Evolution X provides 90° dispersion and higher SPL.

Evolution X’s advanced driver technology delivers market leading resolution and detail. It is an unbeatable choice for live venues, small club spaces and theatres. Capable of high SPL from a relatively compact enclosure, use as a pair for small live music events or as a four point small club system. Combine with the F Series or BR Range of bass loudspeakers for increased low frequency energy.

Linea can do this because state of the art components and a finely optimised design results in an amplifier that is between 7% and 10% more efficient than any competitive product. This efficiency gain directly translates in to the generation of about half the wasted energy (heat) which is clearly significant. In addition to reducing energy costs high efficiency results in generous power reserves ensuring that pristine sound quality is maintained even under the most extreme conditions.

Key Features

  • State of the art Funktion-One sound quality
  • Single loudspeaker solution
  • Wide 90° horizontal dispersion
  • Full range, high SPL
  • High efficiency/low energy consumption design
  • Compact and lightweight (47kg)
  • Funktion-One designed drivers
  • Wide bandwidth Funktion-One midrange (280Hz - 5kHz)
  • New isophase diffraction HF waveguide technology
  • Dedicated transport dolly (wheelboard)

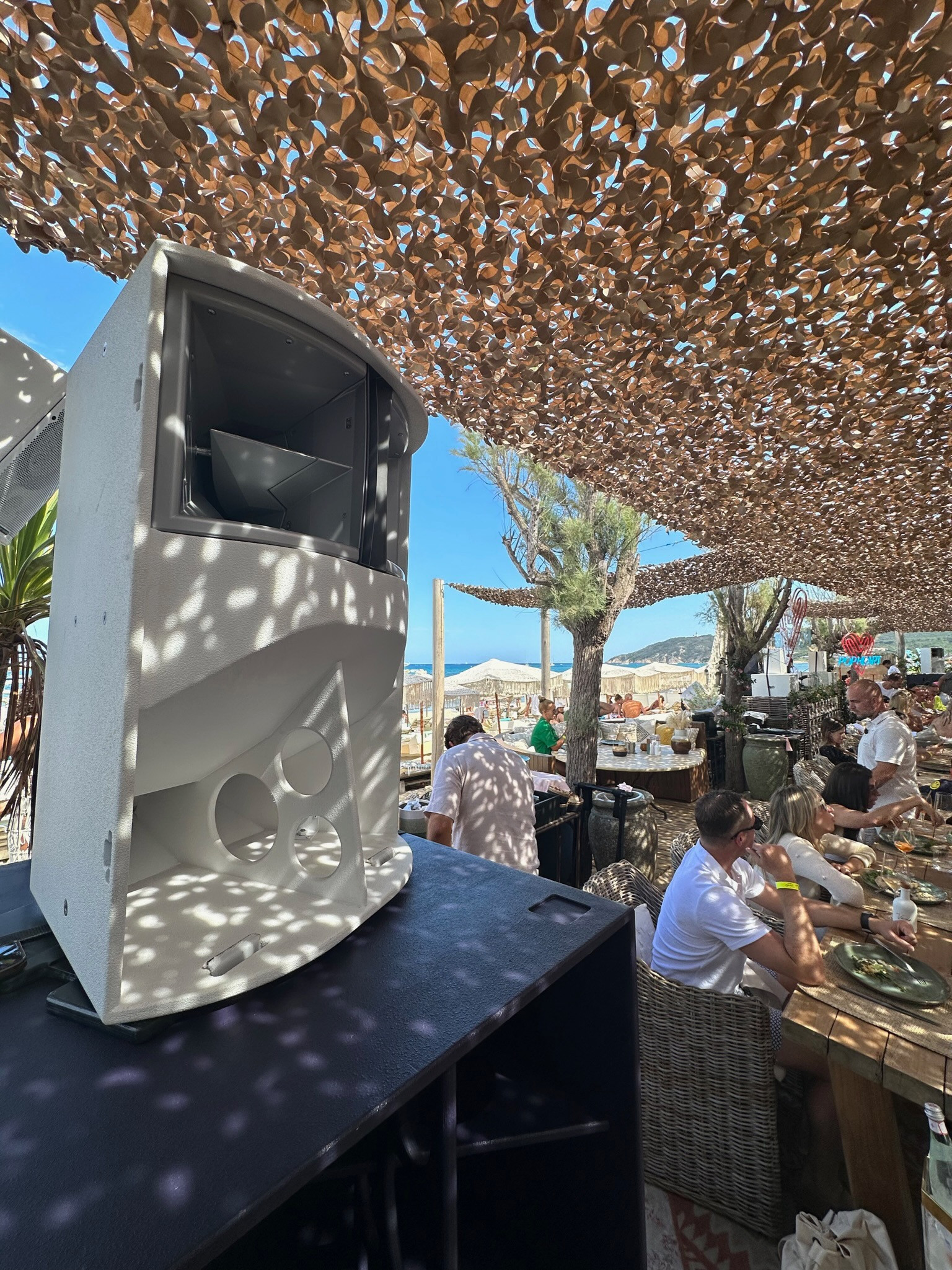

  • IMG 1288 (1)

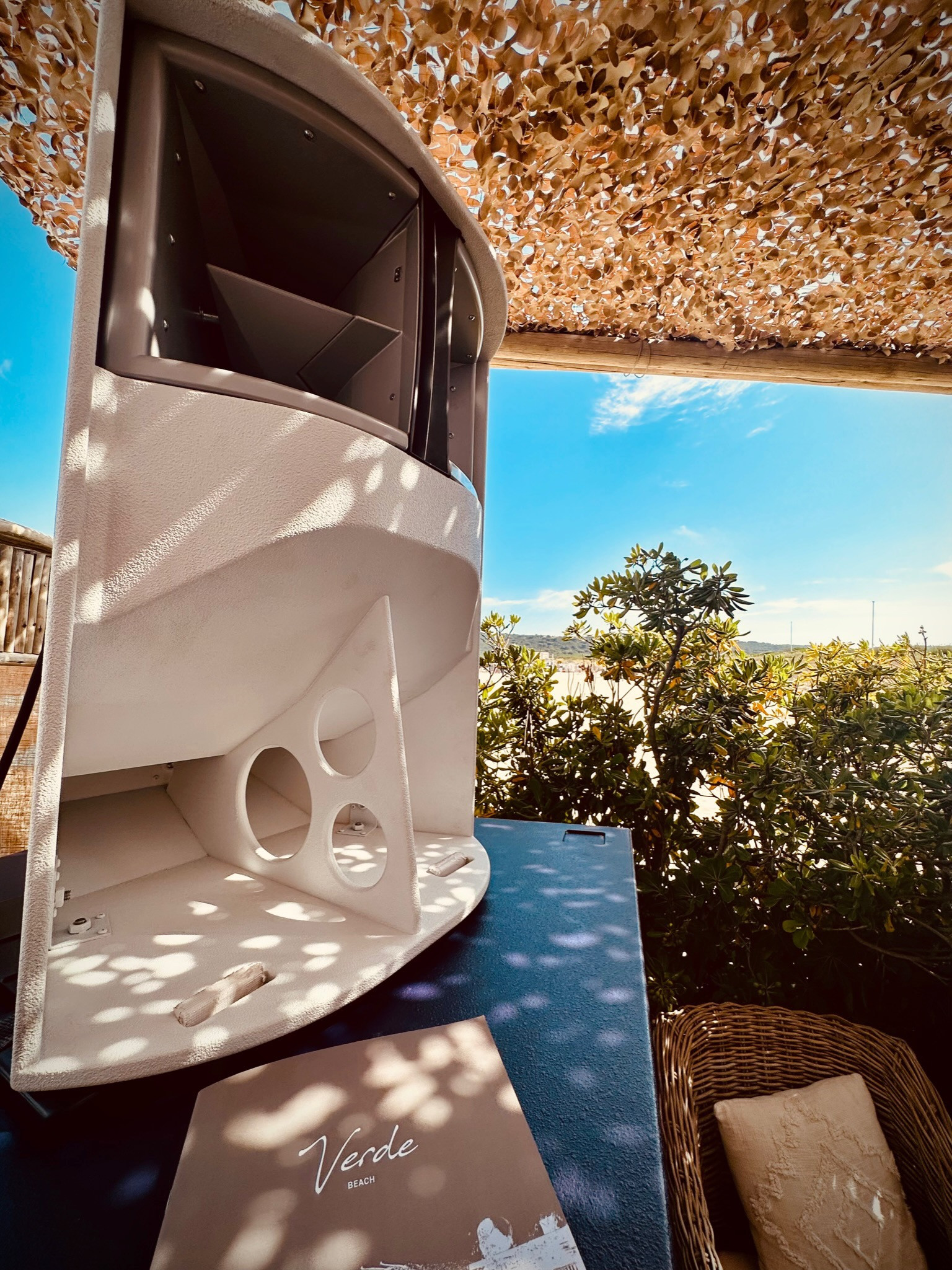

  • IMG 1293
  • IMG 1294

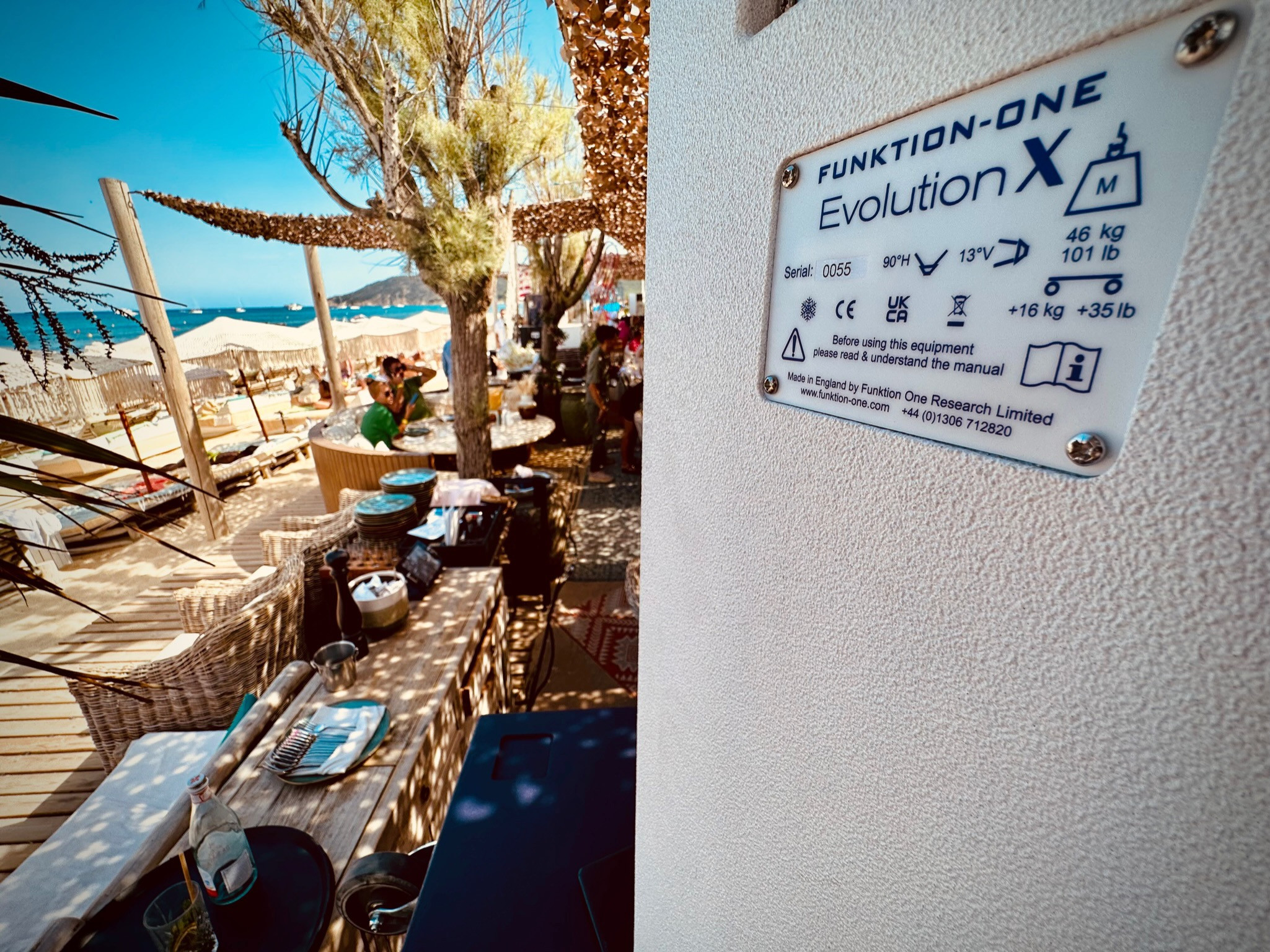

  • IMG 1289
  • IMG 1288 (1)
  • IMG 1293
  • IMG 1294
  • IMG 1289

Technical Specification

Usable Bandwidth (-3DB)
60Hz - 18kHz
Weight
47kg (103lbs) without wheelboard
Nominal Dispersion
90° Horizontal x 15° Vertical
Connectors
2 x Neutrik NL8
Drivers
Driver Operating Band Sensitivity at 1M Power (AES) Nominal Impedance
15" 35/85Hz - 280Hz 102dB at 2.8V 400W
8" 280Hz - 5kHz 107dB at 4V 200W 16Ω
1" 5kHz - 18kHz 109dB at 4V 100W 16Ω
