Evo 2

Funktion-One

Medium Dispersion, Versatile, Point Source

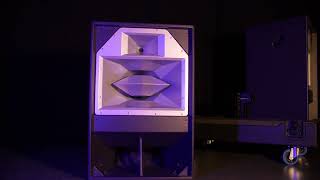

Evo 2 is a medium dispersion, high efficiency, fully horn-loaded, 3-way loudspeaker, which features the latest Funktion-One driver technology and highly refined tuning.

Evo 2 has evolved from the iconic Resolution 2 which has been in the marketplace for 25 years. Its outstanding performance capabilities and versatile format make it very appealing across a range of live event and install applications, including as a four-point club system or two-wide flown system for medium sized venues.

Key Features

  • A truly multipurpose loudspeaker
  • Full range, stand alone capability
  • Fully horn loaded, excellent efficiency
  • Butterfly Plate rigging system
  • Available 3-way active or biamped with passive mid-hi
  • Optional grille
  • Custom flight case
  • Integrated M10 points for install use
  • Evo 2 Mkt Vlt Frt
  • Evo 2 Mkt Blk Vlt
  • Evo 2 Vlt Ax Det Pair 4
  • Evo 2 Vlt Ax Det Pair 3
  • Evo 2 Vlt Ax Det Pair 1
  • Evo 2 Vlt Ax Det Pair 0
  • Evo 2 Vlt Ax Det 5
  • Evo 2 Vlt Ax Det 4
  • Evo 2 Vlt Ax Det 3
  • Evo 2 Vlt Ax Det 2
  • Evo 2 Mkt Vlt Fly Pair
  • Evo 2 Mkt Vlt Fly
  • Evo 2 Blk case rigging
  • Evo 2 Blk case open 2
  • Evo 2 Blk case open 1
  • Evo 2 Blk case closed
  • Evo 2 Fly Brkt Vlt
  • Evo 2 Mkt Vlt Frt
  • Evo 2 Mkt Blk Vlt
  • Evo 2 Vlt Ax Det Pair 4
  • Evo 2 Vlt Ax Det Pair 3
  • Evo 2 Vlt Ax Det Pair 1
  • Evo 2 Vlt Ax Det Pair 0
  • Evo 2 Vlt Ax Det 5
  • Evo 2 Vlt Ax Det 4
  • Evo 2 Vlt Ax Det 3
  • Evo 2 Vlt Ax Det 2
  • Evo 2 Mkt Vlt Fly Pair
  • Evo 2 Mkt Vlt Fly
  • Evo 2 Blk case rigging
  • Evo 2 Blk case open 2
  • Evo 2 Blk case open 1
  • Evo 2 Blk case closed
  • Evo 2 Fly Brkt Vlt

Technical Specification

Usable Bandwidth - 3dB
60Hz - 18kHz
Weight
36kg (80lbs)
Nominal Dispersion
50° Horizontal x 25° Vertical
Connectors
2 x Neutrik NL8 (triamp) or NL4 (biamp)
Drivers
Driver Operating Band Sensitivity at 1M Power (AES) Nominal Impedance
12" 45/85Hz - 280Hz 100db at 2.8v 600w
8" 280Hz - 5kHz 107db at 4v 200w 16Ω
1" 5kHz - 18kHz 108db @ 4v 75w 16Ω

Its manageable size and innovative Butterfly Plate rigging system enable quick and easy deployment. Evo 2 is perfectly suited to ground stacking for small events, flying singly or in pairs for wider coverage and larger audience areas, or used as fills supporting Vero, Evo or Vero VX systems. Evo 2 can easily be adapted between 3 way active (NL8-tri amp) or 3 way passive mid/hi (NL4-bi amp), it is available in standard Funktion-One violet finish or tough black PU coating. A foam backed grille can be added for a more discreet appearance. A custom flight case is also available for safe transportation of a pair of Evo 2.
