F124

Funktion-One

Next Level Funktion-One Bass Performance

F124 features two voice coils and intense magnetic flux, which control the 24” cone with impressive accuracy.

This combination of mid-bass speed and impact with low-bass extension from a single enclosure makes the F124 the perfect bass partner for Evo systems and other Funktion-One mid-high products. The F124 delivers excellent transient response and extended depth to below 30Hz.

Key Features

  • Excellent bass extension from a single enclosure
  • New Funktion-One designed dual voice coil 24” driver
  • FEA-optimised Neodymium magnet
  • Integral handles
  • Low centre of mass for easy handling
  • Location feet and recesses for stacking
  • 18mm Birch Ply
  • Ground stack boards now available for Evo 6 and 7
  • Optional wheels
  • Available in ultra durable black PU coating or classic Funktion-One paint finish

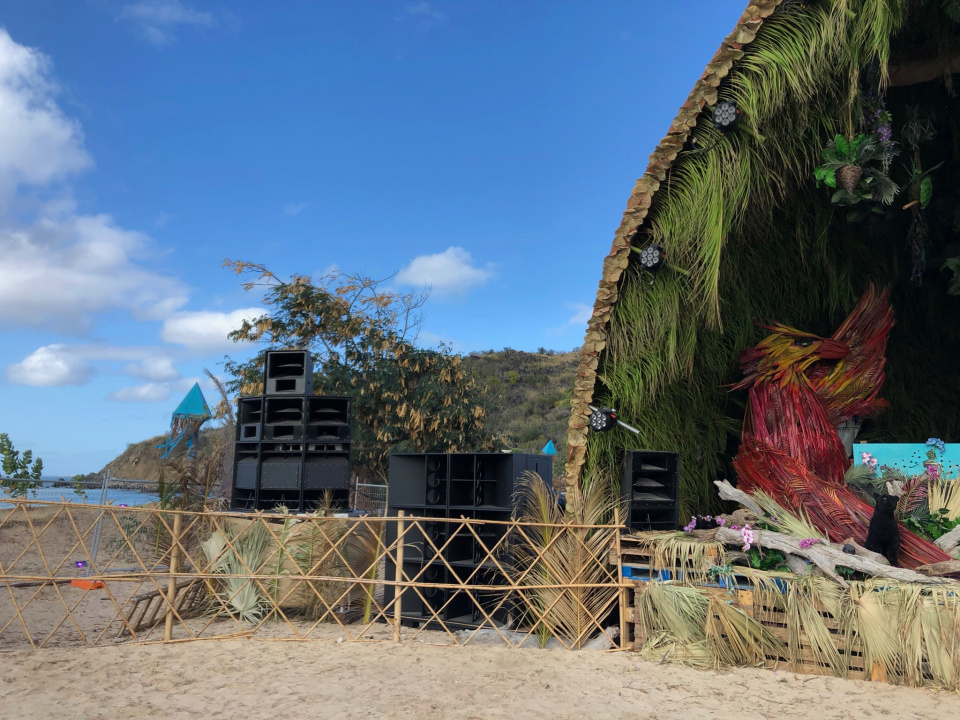

IMG 8385

Technical Specification

Usable Bandwidth (-3DB)
35Hz - 160Hz
Weight
103kg (227lbs)
Nominal Dispersion
Array dependent
Connectors
2 x Neutrik NL4
Drivers
Driver Operating Band Sensitivity at 1M Power (AES) Nominal Impedance
24" dual voice coil 20Hz - 85Hz 104dB at 2V 1500W 2 x 8Ω

Downloads

Horn Loaded Bass

Browse the complete Horn Loaded Bass range here
