DM88

Everything, everywhere, all at once.

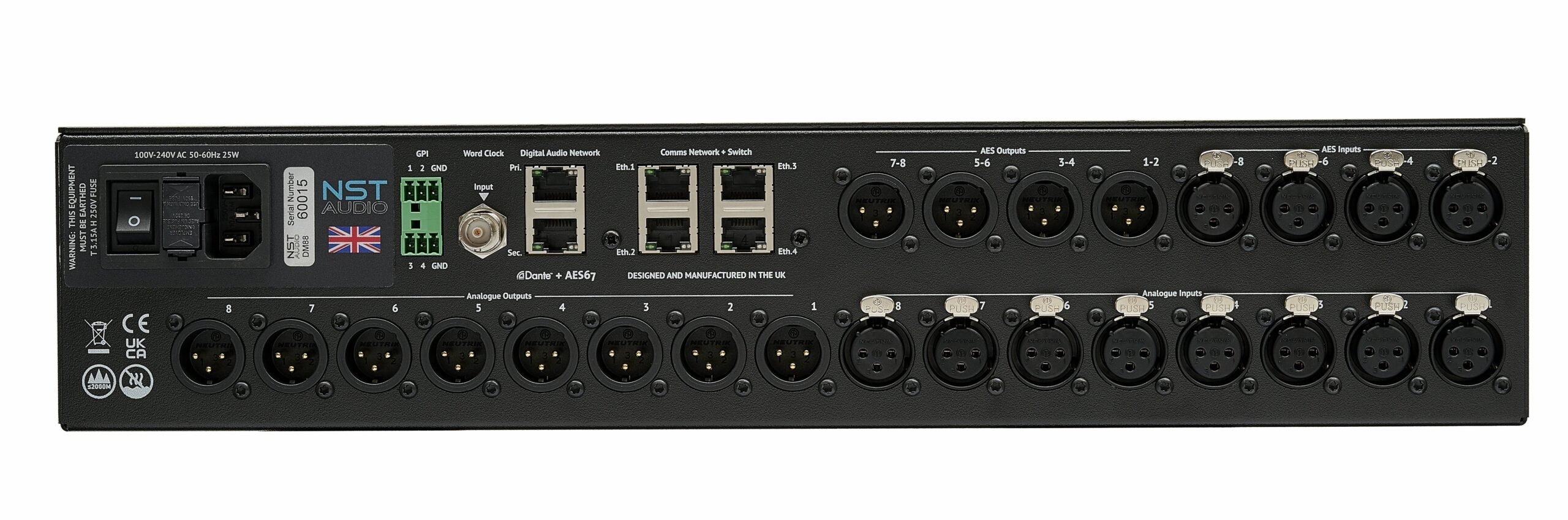

The DM88 is NST Audio's most advanced system processor — built to handle FOH duties, complex installations, and everything in between with equal ease. Sixteen Dante channels, eight analogue inputs and outputs, and 4x2 AES3 I/O all feed into a fully flexible 16-channel processing matrix, so any source can be routed to any output, in any combination.

Every processing channel can be configured as either a general input stage — with multi-layer parametric EQ, three bands of dynamic EQ, compression, high-pass filtering, delay and phase reverse — or as a dedicated output stage for speaker processing, with 48dB/octave crossover filters, FIR filtering up to 1024 taps per channel, and a new limiter mode designed specifically for passive two-way speaker boxes.

A three-level failover system keeps signal flowing automatically if a source drops out, while direct source-to-output routing lets the DM88 bypass DSP entirely when you just need clean format conversion or break-in/break-out.

Key Features

16 x Dante, 8 x analogue, 4x2 x AES3 inputs and outputs
16 fully configurable processing channels
Multi-layer parametric EQ with selectable behaviour library
3-band dynamic EQ, compression, high-pass filter, delay & phase reverse
48dB/octave crossover filters, FIR up to 1024 taps/channel
Standard and passive 2-way RMS limiter modes, plus look-ahead clip limiter

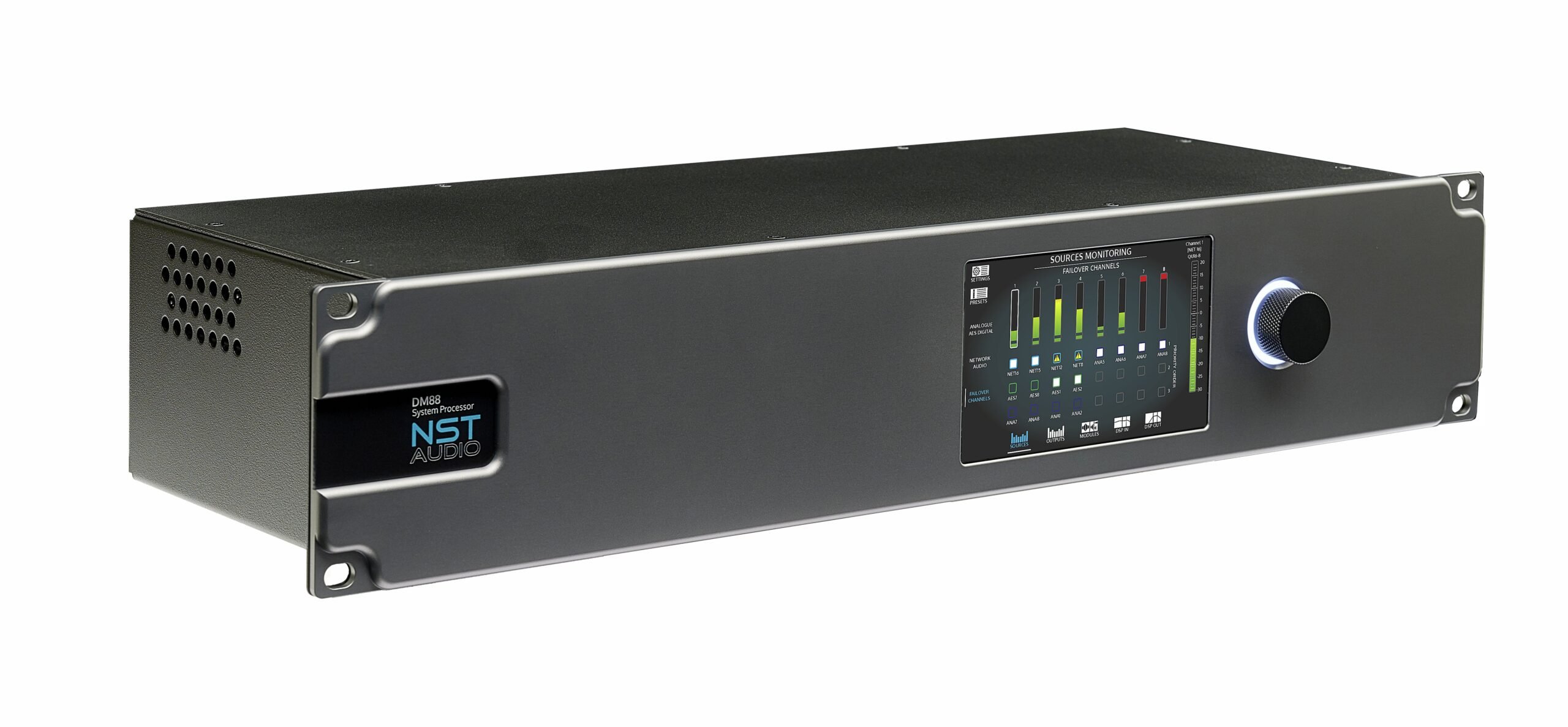

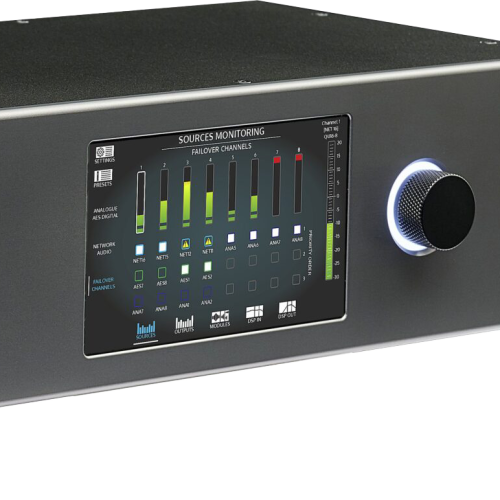

3-level automatic failover with virtual inputs
4-source mix matrix on every input and output channel

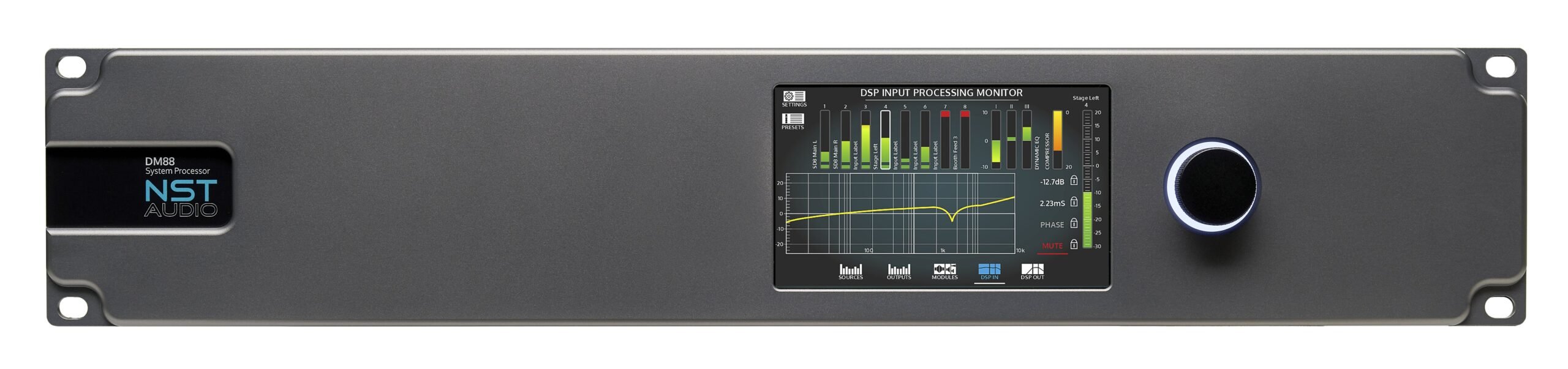

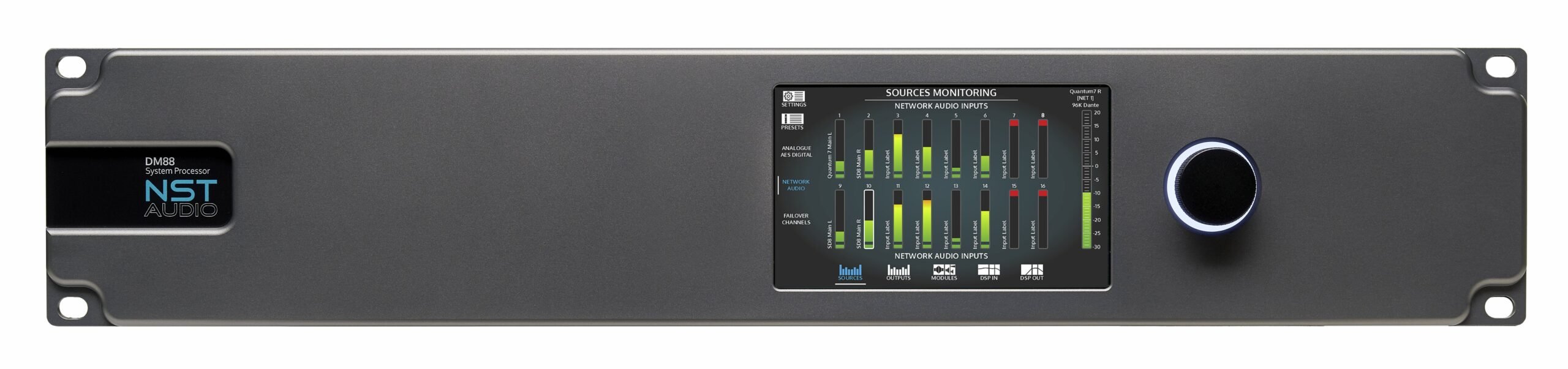

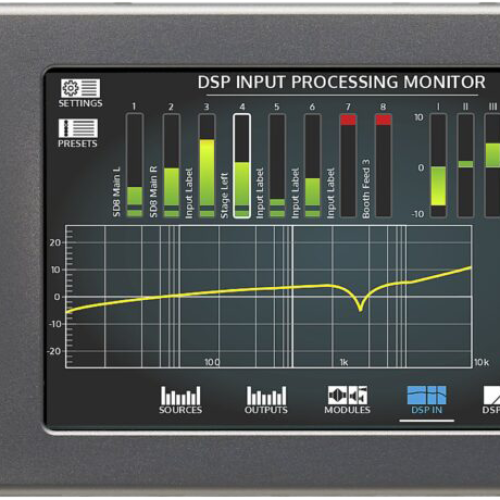

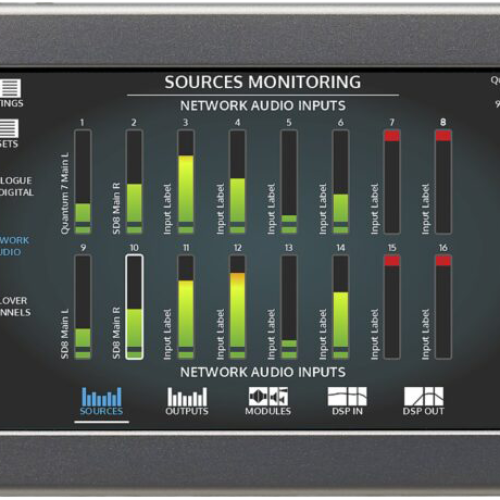

5" colour touchscreen for monitoring, level, delay/phase/mute control and preset recall
Up to 64 onboard presets for offline recall

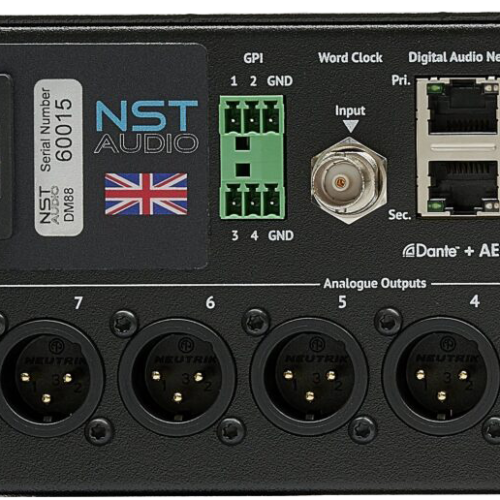

4 configurable GPI ports
Integrated 4-port Ethernet switch, 100Mbps remote control
Compatible with VR1 & VR2 wall-mount remotes and the V-Remote iPhone/iPad app
Controlled via D-Net software (PC, Mac, iPad) with device grouping and linking
