APC1

Funktion-One

Polarity Checker

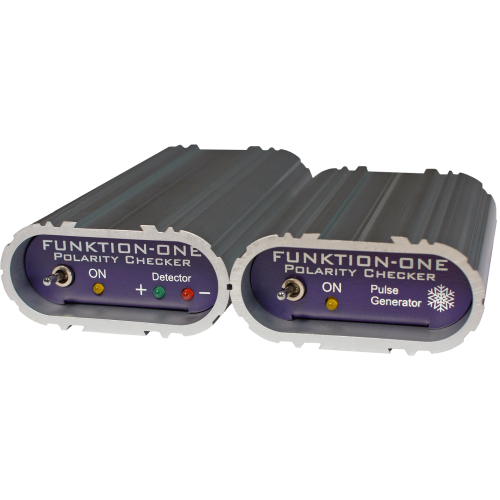

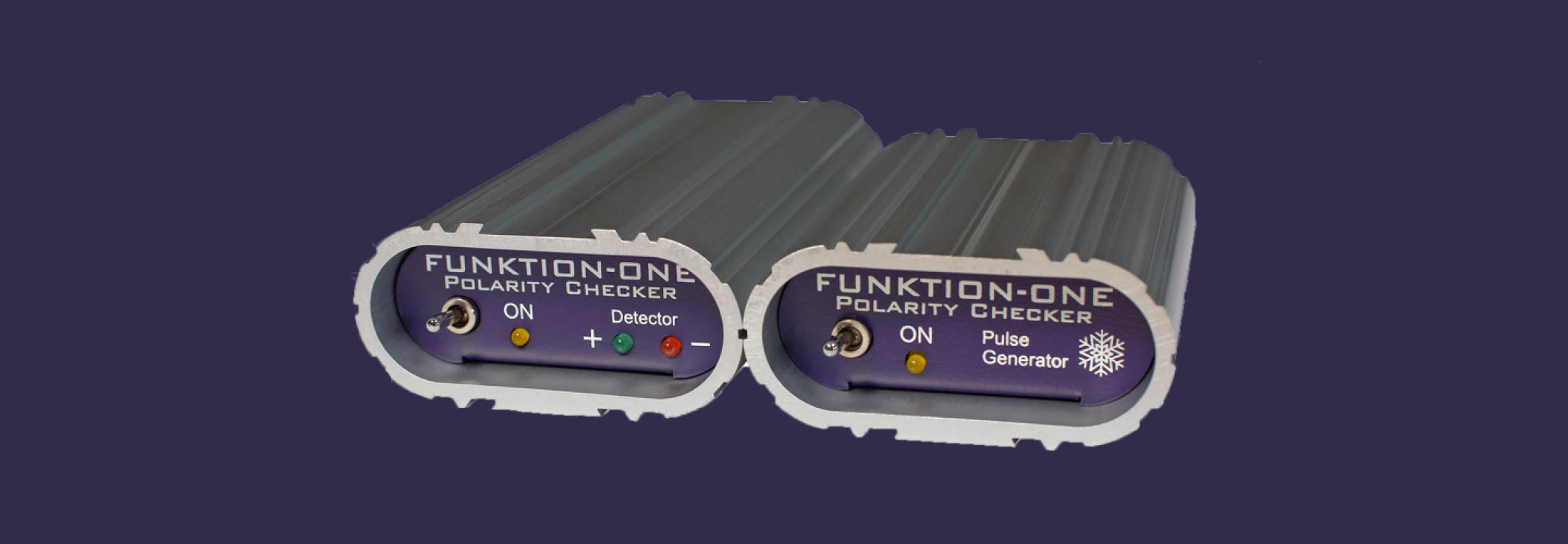

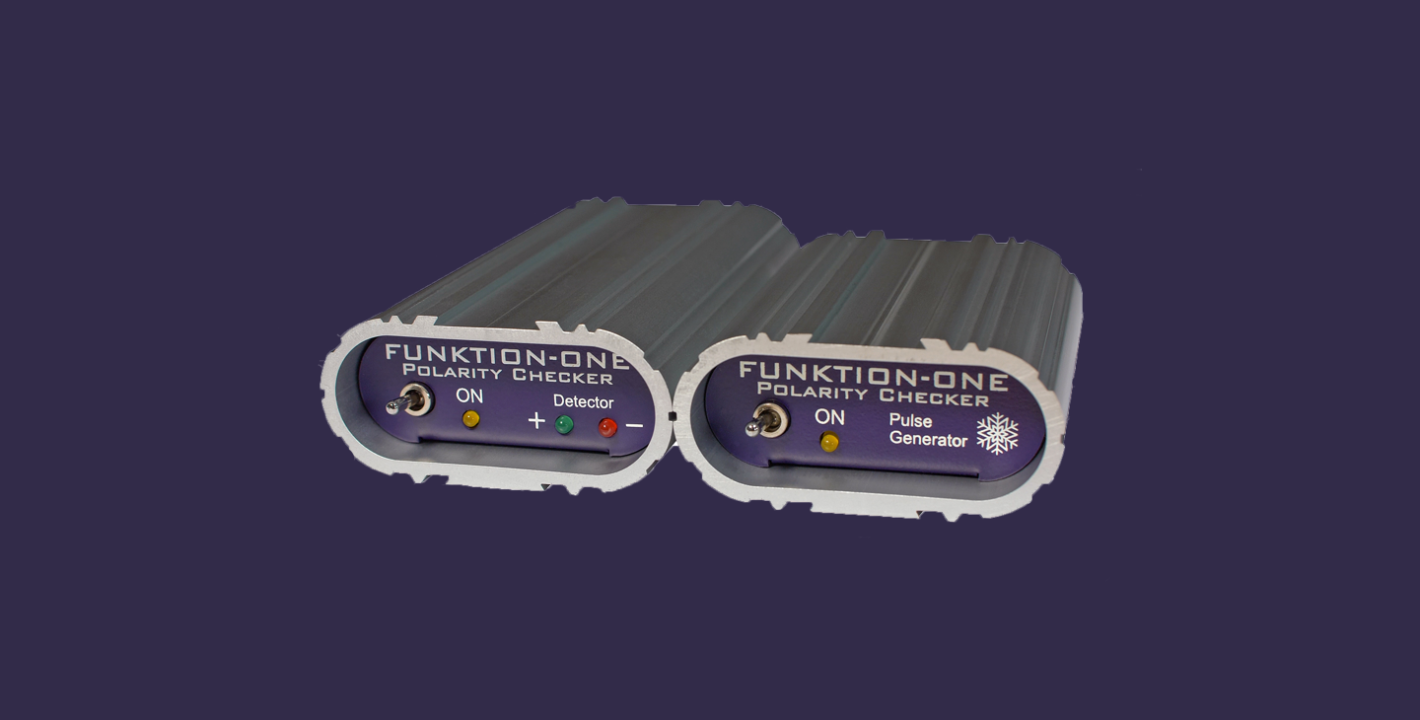

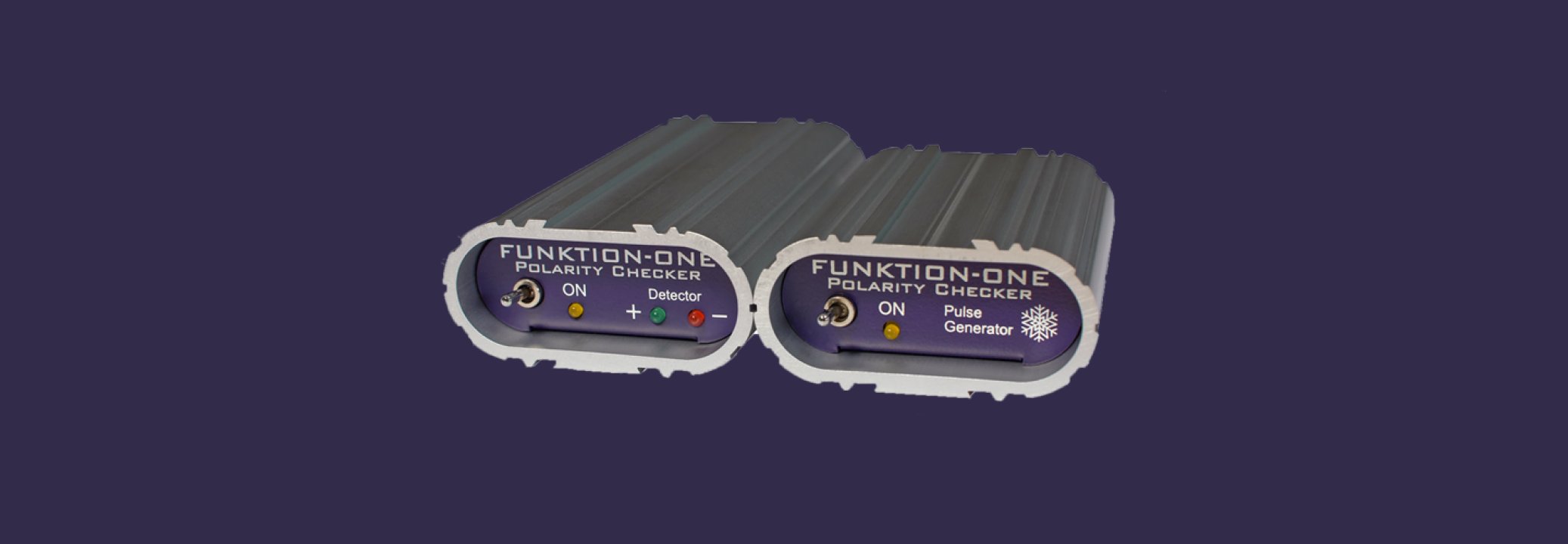

The ASPC1 Audio System Polarity Checker is an essential tool for system technicians, designed to ensure that all drivers in a sound system are operating with correct polarity.

It consists of two components:

1. Pulse Generator: Emits a positive phase signal and features a flashing yellow LED to indicate the pulse tempo and signal that the device is active.

2. Detector: Uses green and red LEDs to display whether a driver has positive or negative polarity, and includes a flashing yellow LED to confirm that it is operational.

Features

  • XLR Outputs on the pulse generator for easy integration with audio systems.
  • LEDs synchronize with the pulse to indicate operation.
  • Built-in Microphone for capturing audio signals directly.
  • Clear LED Display shows the polarity of the received signal with distinct green and red indicators.
  • Light and Compact Design ensures easy handling and portability.
  • Supplied with Belt Pouch for convenient storage and access.
  • Useful Instructions included for straightforward use.
  • Batteries Included, ready for immediate use.
